Introduction

When obtaining data from Copernicus Climate Data Service you cannot download the data directly. You need to know which data you want, submit a request for a specific dataset. Wait for your request to complete, and if successful, download the data. The CopernicusClimate package has functions to facilitate this process. This vignette will walk you through the different steps to download data.

But before you can even get started, there are some things you have to prepare first, as explained in the following section.

Prerequisites

Access token

This R package is built around the Application Programming Interface (API) provided by C3S. Many of the features of this API require to identify yourself, for which a ‘key’ or API token is used. You can get one by creating an account at https://cds.climate.copernicus.eu/profile.

Once you have an account you can generate (or refresh) an API key. You can use this token by means of the token argument in many of the functions of this package. But rather then providing the key separately each time, you can use the key throughout your R session by setting it once with cds_set_token().

However, if you want to share your work, it is not very secure to keep your strictly personal key hard coded in your script. Furthermore, setting the key with cds_set_token() does not persist across sessions. Instead, you could set it as an option in your .rprofile file, or as a environmental variable on your system. In both cases the variable should be named CDSAPI_KEY. This variable is automatically picked up by cds_get_token() and you don’t have to specify it anywhere in your script.

You can check if your token works with cds_token_works():

library(CopernicusClimate)

message(
  "The machine that rendered this vignette ",
  ifelse(
    cds_token_works(), "has", "does not have"),
  " a working token")
#> The machine that rendered this vignette has a working token

Licences

In order to download datasets you need to accept its accompanying licence. You can use cds_dataset_form() to inspect under which licence a dataset is provided, like so:

library(dplyr)

licence_info <-
  cds_dataset_form("reanalysis-era5-pressure-levels") |>
    filter(name == "licences")

licence_info <- licence_info$details[[1]]$details$licences[[1]]
print(licence_info)
#> $id
#> [1] "cc-by"
#>
#> $revision
#> [1] 1
#>
#> $label
#> [1] "CC-BY licence"
#>
#> $contents_url
#> [1] "https://object-store.os-api.cci2.ecmwf.int:443/cci2-prod-catalogue/licences/cc-by/cc-byv1_2b61eb0b42e053566cb9447c1d2847a69a275c095e00fca00bad1bf5326a9432.md"
#>
#> $attachment_url
#> [1] "https://spdx.org/licenses/CC-BY-4.0"
#>
#> $spdx_identifier
#> [1] "CC-BY-4.0"

You can accept this licence by calling cds_accept_licence(licence_info$id, licence_info$revision). You only need to do this once for every licence. Accepted licences are stored with your account and can be listed with cds_accepted_licences(). Without accepting required licences you cannot submit a successful request for downloading it.

Finding datasets

Websites

If you want a visual interface for exploring available datasets, you can use your web browser and visit either the Climate Data Store or STAC catalogue. Both allow you to navigate through the treasures of information, and identify which dataset best serves your needs.

Programatically

You can also use this R package to look for datasets. You could start by listing them all:

cds_list_datasets()
#> # A tibble: 124 × 16
#>    type       id    stac_version title description keywords license extent
#>    <chr>      <chr> <chr>        <chr> <chr>       <list>   <chr>   <list>
#>  1 Collection rean… 1.0.0        ERA5… "ERA5-Land… <list>   CC-BY-… <named list>
#>  2 Collection insi… 1.0.0        Glob… "This set … <list>   other   <named list>
#>  3 Collection rean… 1.0.0        ERA5… "ERA5 is t… <list>   CC-BY-… <named list>
#>  4 Collection sate… 1.0.0        Sea … "This data… <list>   other   <named list>
#>  5 Collection rean… 1.0.0        ERA5… "ERA5-Land… <list>   CC-BY-… <named list>
#>  6 Collection rean… 1.0.0        Arct… "The C3S A… <list>   CC-BY-… <named list>
#>  7 Collection rean… 1.0.0        ERA5… "ERA5 is t… <list>   CC-BY-… <named list>
#>  8 Collection deri… 1.0.0        ERA5… "ERA5-Land… <list>   CC-BY-… <named list>
#>  9 Collection deri… 1.0.0        ERA5… "ERA5 is t… <list>   CC-BY-… <named list>
#> 10 Collection rean… 1.0.0        Arct… "The C3S A… <list>   CC-BY-… <named list>
#> # ℹ 114 more rows
#> # ℹ 8 more variables: links <list>, assets <named list>, published <chr>,
#> #   updated <chr>, `cads:message` <list>, `cads:disabled_reason` <chr>,
#> #   `cads:sanity_check` <list>, `sci:doi` <chr>

But you can also look for specific datasets using free search text and / or predefined keywords:

cds_search_datasets(search = "rain", keywords = "Temporal coverage: Future")
#> # A tibble: 9 × 15
#>   type       id     stac_version title description keywords license extent
#> * <chr>      <chr>  <chr>        <chr> <chr>       <list>   <chr>   <list>
#> 1 Collection proje… 1.0.0        CMIP… "This cata… <list>   other   <named list>
#> 2 Collection sis-e… 1.0.0        Clim… "The Pan-E… <list>   other   <named list>
#> 3 Collection sis-e… 1.0.0        Clim… "This data… <list>   CC-BY-… <named list>
#> 4 Collection sis-h… 1.0.0        Temp… "This data… <list>   CC-BY-… <named list>
#> 5 Collection sis-e… 1.0.0        Esse… "This data… <list>   other   <named list>
#> 6 Collection sis-t… 1.0.0        Moun… "This data… <list>   CC-BY-… <named list>
#> 7 Collection sis-e… 1.0.0        Clim… "This data… <list>   CC-BY-… <named list>
#> 8 Collection proje… 1.0.0        CMIP… "This cata… <list>   other   <named list>
#> 9 Collection proje… 1.0.0        CORD… "This cata… <list>   other   <named list>
#> # ℹ 7 more variables: links <list>, assets <named list>, published <chr>,
#> #   updated <chr>, `sci:doi` <chr>, `cads:disabled_reason` <list>,
#> #   `cads:sanity_check` <list>

Use cds_catalogue_vocabulary() to list available predefined keywords.

You will see that either approach results in a data.frame with a column named id. You can use this id to refer to when setting up a request for download.

Favourite datasets

You can also mark your favourite datasets with a star using cds_assign_star(). You can get list your favourite datasets with cds_starred(). This makes it easier to find datasets you use a lot. You can remove a star with cds_remove_star().

Specifying a request

In many cases you cannot download an entire dataset at once, because it it too large. This means you have to specify a subset that you want to have.

What are my options?

How do you know what options you have to subset a dataset? These options differ for each dataset, so there is no straightforward answer. However, you can inspect what options you have for a specific dataset. You can start by obtaining the cds_dataset_form().

dataset_form <-
  cds_dataset_form("reanalysis-era5-pressure-levels")

dataset_form
#> # A tibble: 13 × 9
#>    name            label      required css   type  id    help  details  children
#>    <chr>           <chr>      <lgl>    <chr> <chr> <chr> <chr> <list>   <list>
#>  1 product_type    Product t… TRUE     todo  Stri… prod… NA    <tibble> <tibble>
#>  2 variable        Variable   TRUE     todo  Stri… vari… Plea… <tibble> <tibble>
#>  3 year            Year       TRUE     todo  Stri… year  NA    <tibble> <tibble>
#>  4 month           Month      TRUE     todo  Stri… month NA    <tibble> <tibble>
#>  5 day             Day        TRUE     todo  Stri… day   NA    <tibble> <tibble>
#>  6 time            Time       TRUE     todo  Stri… time  UTC … <tibble> <tibble>
#>  7 pressure_level  Pressure … TRUE     todo  Stri… pres… NA    <tibble> <tibble>
#>  8 area_group      Geographi… NA       NA    Excl… area… Sele… <tibble> <tibble>
#>  9 global          Whole ava… NA       NA    Free… glob… NA    <tibble> <tibble>
#> 10 area            Sub-regio… NA       NA    Geog… area  Sele… <tibble> <tibble>
#> 11 data_format     Data form… TRUE     todo  Stri… data… Sele… <tibble> <tibble>
#> 12 download_format Download … TRUE     todo  Stri… down… If y… <tibble> <tibble>
#> 13 licences        Terms of … NA       NA    Lice… NA    NA    <tibble> <tibble>

This results in a data.frame listing which aspects of a dataset you can select from. Each row represents an aspect (except for the row with the name "licences"). The column details contains information about the available values. You could for instance look at the possible values for the pressure_level:

values <-
  dataset_form |>
  filter(name == "pressure_level") |>
  pull("details")

values[[1]]$details$values |> unlist()
#>  [1] "1"    "2"    "3"    "5"    "7"    "10"   "20"   "30"   "50"   "70"
#> [11] "100"  "125"  "150"  "175"  "200"  "225"  "250"  "300"  "350"  "400"
#> [21] "450"  "500"  "550"  "600"  "650"  "700"  "750"  "775"  "800"  "825"
#> [31] "850"  "875"  "900"  "925"  "950"  "975"  "1000"

Using this information you can start building your request using cds_build_request(). You can start by just specifying your dataset:

request <- cds_build_request("reanalysis-era5-pressure-levels")
summary(request)
#>                 Length Class  Mode
#> product_type     1     -none- character
#> variable        16     -none- list
#> year            86     -none- list
#> month           12     -none- list
#> day             31     -none- list
#> time            24     -none- list
#> pressure_level  37     -none- list
#> data_format      1     -none- character
#> download_format  1     -none- character

The function cds_build_request() will automatically add all required parameters to the request and fills it with either their default value, if available, or all allowed values otherwise. The request built above will ask for the complete dataset in the default product type, plus data and download format. As I will explain in the following section, this request will fail for most users. So let’s narrow it down:

request <- cds_build_request(
  "reanalysis-era5-pressure-levels",
  variable       = "temperature",
  pressure_level = "1000",
  year           = "2025",
  month          = "01",
  day            = "01",
  area           = c(n = 60, w = -5, e = 10, s = 40),
  data_format    = "netcdf")
summary(request)
#>                 Length Class  Mode
#> variable         1     -none- list
#> pressure_level   1     -none- list
#> year             1     -none- list
#> month            1     -none- list
#> day              1     -none- list
#> area             4     -none- numeric
#> data_format      1     -none- character
#> product_type     1     -none- character
#> time            24     -none- list
#> download_format  1     -none- character

This looks like a reasonable request.

How much can I get?

As mentioned before, the amount of data that can be requested for each download is restricted. In order to test how much a request would cost you can call cds_estimate_costs(). Using the example above, if you want to download the full dataset, the estimated costs are as follows:

if (cds_token_works()) {
  cds_estimate_costs("reanalysis-era5-pressure-levels")
} else {
  message("You need a working token to estimate costs")
}
#> $id
#> [1] "size"
#>
#> $cost
#> [1] 446301696
#>
#> $limit
#> [1] 60000

In this example the costs exceed the limit, such that this request will fail. If we estimate the costs for the more restricted request, we get:

if (cds_token_works()) {
  cds_estimate_costs(
    "reanalysis-era5-pressure-levels",
    variable       = "temperature",
    pressure_level = "1000",
    year           = "2025",
    month          = "01",
    day            = "01",
    area           = c(n = 60, w = -5, e = 10, s = 40),
    data_format    = "netcdf")
} else {
  message("You need a working token to estimate costs")
}
#> $id
#> [1] "size"
#>
#> $cost
#> [1] 144
#>
#> $limit
#> [1] 60000

This is a request that we can afford.

Submitting a request

Once you have established which dataset you want to download and how you wish to subset it, you can submit a request to C3S. Let’s submit the request as shown above:

if (cds_token_works()) {
  job <-
    cds_submit_job(
      "reanalysis-era5-pressure-levels",
      variable       = "temperature",
      pressure_level = "1000",
      year           = "2025",
      month          = "01",
      day            = "01",
      area           = c(n = 60, w = -5, e = 10, s = 40),
      data_format    = "netcdf")
  job
} else {
  message("You need a working token to submit a request")
}
#> # A tibble: 1 × 10
#>   processID           type  jobID status created started finished updated links
#> * <chr>               <chr> <chr> <chr>  <chr>   <chr>   <chr>    <chr>   <list>
#> 1 reanalysis-era5-pr… proc… 7a49… succe… 2025-1… 2025-1… 2025-10… 2025-1… <list>
#> # ℹ 1 more variable: metadata <list>

By default this function will wait until the request has been processed by C3S. But when you set the argument wait = FALSE, the function will return immediately. In that case, you can submit multiple jobs where you don’t have to wait for each individual request to complete.

Tracking submitted requests

When submitting a request and choose not to wait for it to complete, you may want to track the progress of your request. You can use cds_list_jobs() to list all your submitted jobs. If you want the status of a specific job, you can use its identifier (id). You were sent this id when you submitted it earlier. So we can have a look at the status of our job submitted above:

if (cds_token_works()) {
  cds_list_jobs(job$jobID)
} else {
  message("You need a working token to get a job status")
}
#> # A tibble: 1 × 10
#>   processID           type  jobID status created started finished updated links
#> * <chr>               <chr> <chr> <chr>  <chr>   <chr>   <chr>    <chr>   <list>
#> 1 reanalysis-era5-pr… proc… 7a49… succe… 2025-1… 2025-1… 2025-10… 2025-1… <list>
#> # ℹ 1 more variable: metadata <list>

Downloading data

Now that we have submitted the request we can download it (if it is completed successfully) with cds_download_jobs(). If you don’t specify a job identifier, it will download all (previously submitted) successful jobs. You can also download one or more specific jobs. Note that this function will use parallel downloads which should give you some performance advantage when downloading multiple jobs. For now let’s try to download the submitted job:

filename <- "result.nc"
if (cds_token_works()) {
  file_result <- cds_download_jobs(job$jobID, tempdir(), filename)
} else {
  message("Downloading data only works with a valid token")
}

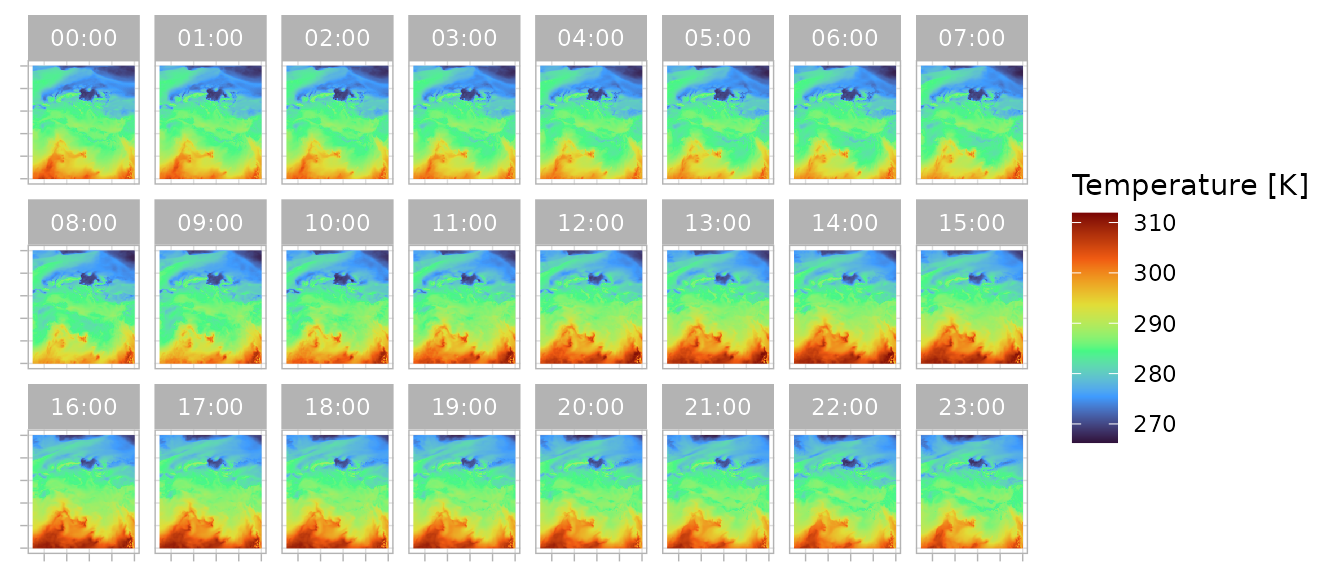

Now you can do whatever it is you want to do with the data:

fn <- file.path(tempdir(), filename)

if (file.exists(fn)) {

  library(stars)
  library(ggplot2)

  result <- read_mdim(fn)

  ggplot() +
    geom_stars(data = result) +
    coord_sf() +
    facet_wrap(~strftime(valid_time, "%H:%M"), nrow = 3) +
    scale_fill_viridis_c(option = "turbo") +
    labs(x = NULL, y = NULL, fill = "Temperature [K]") +
    theme(axis.text = element_blank())

} else {
  message("File wasn't downloaded")
}
